10 Tons Dried Vegetable Continuous Belt Dryer Beet Radish Drying Processing
Description:

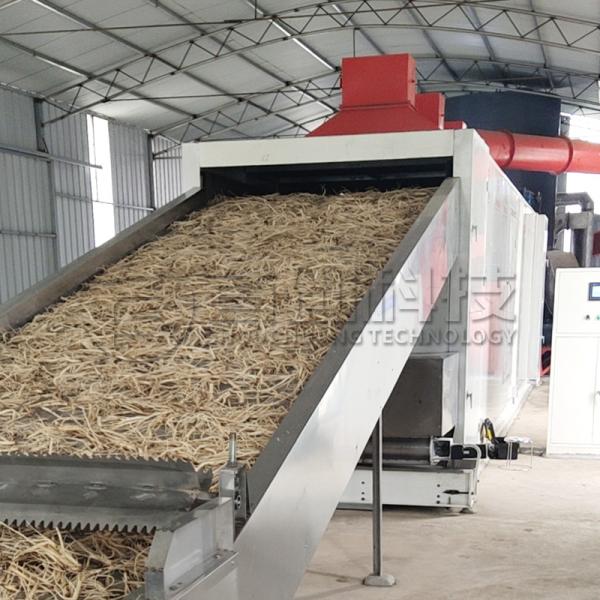

The multi-layer vegetable continuous belt dryer introduces an innovative approach to the drying process. This structure, with its circulating and flipping mechanism, facilitates layer-by-layer drying, closely simulating the manual flipping of items under the sun. Moist air is efficiently extracted from the top layer, and the short contact time (less than 5 seconds) between moist air and items prevents undesired material fusion.
The unique "shaking" phenomenon in vegetable belt dryer ensures the preservation of item color throughout the drying process. Its multi-layer design allows for efficient moisture removal, contributing to the production of consistently dried items.
Specifications:
| Model | DW2×6m | DW2×8m | DW2×10m | DW2×12m | DW2×14m | DW2×16m |
| Area of dry | 3 layers | 29㎡ | 40㎡ | 51㎡ | 62㎡ | 73㎡ | 83㎡ |
| 4 layers | 39㎡ | 53㎡ | 68㎡ | 83㎡ | 97㎡ | 110㎡ |
| 5 layers | 48㎡ | 66㎡ | 85㎡ | 103㎡ | 121㎡ | 138㎡ |
| 6layers | 57㎡ | 79㎡ | 102㎡ | 124㎡ | 145㎡ | 165㎡ |
| Thickness of the material | 50---150mm |
| Operation temperature | 40---120℃ |
| Drying time | 0.5——5 hour or 3——15 hour |
| Motor power | 1.1kw | 1.5kw | 1.5kw | 1.5kw | 2.2kw | 3kw |
| Evaporation,capacity | 200-400kg/h | 300-600kg/h | 400-700kg/h | 500-800kg/h | 600-1000kg/h | 700-1200kg/h |
| Size of hot blast stove | 1.2×2.5×1.7 | 1.2×2.7×1.9 | 1.3×3×2 | 1.3×3×3 | 1.6×3.5×2.2 | 1.6×3.7×2.2 |
| Fan | 8C-15kw | 10C-15kw | 10C-22kw | 10C-37kw | 12C-30kw | 12C-45kw |
| Output conveyor | 1.1kw |
| Total power | 18kw | 18.4kw | 26kw | 41kw | 35.1kw | 46.7kw |
MATERIAL APPLICATION
COMPANY PROFILE
Sichuan Shouke was founded in 1972, is one of China's large-scale intelligent agricultural machineryand equipment manufacturers, with drying equipment, sericulture machinery as the core business, in fruits and vegetables, food, Chinese medicine.sericulture silk processing and other felds to provide users with high-quality, efhcient and more competitive products. The existing R & D, management, sales and technical workers nearly 200 people, theproduction base of more than 50,000 square meters
Shouchuang Technology provides drying solutions and a complete product line of the whole industrialchain,including simple homework to large-scale engineering production lines of various products.flexible to meet the different needs of different stages of different customers and rapid innovationneeds.
PATENT CERTIFICATE
SHIPMENT AND PACKGAGE
Packaging And Delivery Details:
1. Standard import and export wooden case
2. According to customer requirements, the packaging method can be negotiated.
